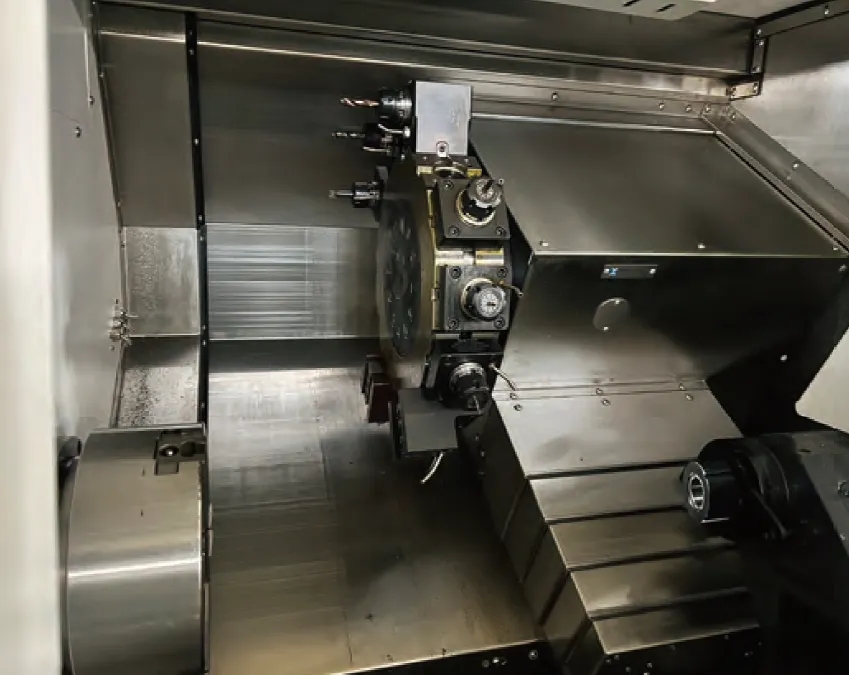

ST500 CNC Turning Machine
•Modular design and compact structure.
•Wear-resistant cast iron bed with good rigidity and stable operation.
•Inclined bed for the better movement of workpiece shift.
•Driven by the servo spindle to meet different machining speeds.
•High precision linear guides on axes.
•Full metal enclosure greatly reduces noisy and machine protection.
•ldeal for making the conical, spherical and irregular shape parts.
•Solution for processing the large, medium, small batch parts, multi-variety and multi-specification parts.
| WORKING AREA | Swing over bed | 600 mm |
| Swing over carriage | 400 mm | |
| Swing over carriage | 400 mm | |
| Max turning length | 1000 mm | |
| SPINDLE | Spindle bore | 66 mm |
| Chuck diameter | 8 inches | |
| Spindle motor power | 11/15 kW | |
| Spindle speed | 4500 rpm | |
| Spindle nose taper | A2-6 | |
| Spindle bearing diameter | 100 mm | |
| TRAVEL & FEED | X-axis travel | 350mm |
| Z-axis travel | 1000 mm | |
| Servo motor (X/Z) | 3/3 kW | |
| Rapid traverse speed (X/Z) | 24 m/min | |
| Ball screw pitch (X/Z) | 35/45 mm | |
| TOOL TURRET | Turret type | Servo-driven |
| Tool turret | BMT55 / 12 stations | |
| Outer diameter tool | 25 mm | |
| Inner diameter tool | Φ40 mm | |
| TAILSTOCK | Tailstock type | Hydraulic |
| Tailstock quill diameter: | 90 mm | |
| Tailstock quill stroke | 120 mm | |
| Tailstock base travel | 800 mm | |
| Tailstock quill taper | MT#5 | |
| OTHERS | Hydraulic tank capacity: | 60 liters |
| Coolant tank capacity | 310 liters | |
| Machine dimensions (L × W × H) | 3840 × 1660 × 2150 mm | |
| Machine weight | 5200 kg |
● Box-type slide rail
● C-axis with disc brake
● Hollow hydraulic cylinder
● 3-jaw hydraulic chuck
● Standard soft jaws
● Hydraulic power unit
● Electric tool turret
● Hydraulic tailstock
● Coolant pump (3kg/cm2) & tank
● LED work light
● Tri-color warning light
● Electrical cabinet heat exchanger
● Automatic lubrication system
● Fully enclosed guarding system
● Chip conveyor with belt-type chip cart
● Fully Enclosed Machine Guard
● Foot pedal
● Leveling base plates
● Transformer
● MT5 live center
● Maintenance tool kit
● Operation & maintenance manual
● Full set of tool holders and cutting tools
● Mechanical calipers
